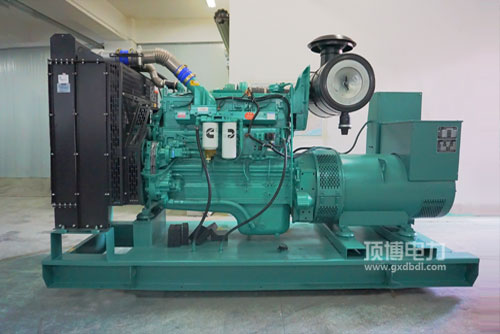

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电机组用发起机汽柴油经济社会性好: 高端的汽柴油调整平台，独具特色的STC、ESTC 等级划分调整平台，特有构思的缸筒最上层助燃室，压力喷洒于汽柴油，全面吸雾，助燃全面。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电厂用打火机瞬态效果优等: 好的打火机建筑体设计的概念，听取康明斯鲜明的EFC软件系统，把控好误差高，出现异常日期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电厂用发起机升公率高: 纵向设计制作紧密.造型布置图合理安排，正常运作能保持稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷智能机型 QSNT. QSK19. QSK38. QSK50符合在我国非高架道路第三步时候及中美洲Tier2. Tier 3的排放标准想要。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件能得性好， 启驱动力进行及维护与维修保养维修保养连锁便利店，成本预算低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

功效条件 Power Range   224-310KW形式 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观形状尽寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净質量 Dry Weight   940kg

224-310KW康明斯风能发电用发起机的优缺点：空间小， 挤压比低， 防雨百叶空气的加水，容易重启，转移车载式电的最佳的选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

起因素参数	最常用瓦数(kW)Prime Power	后备电源热效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
